A selection of the Travelling Head Presses that Alpress supply are shown below:

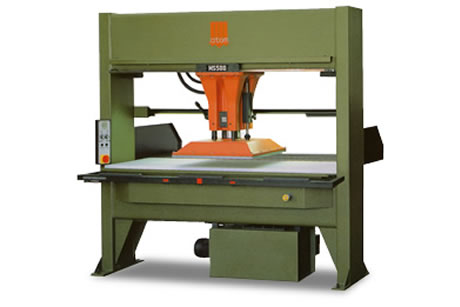

Atom S588 / HS588
The main features of these cutting systems are a high trolley movement speed, which ensures high operating speed and therefore high productivity.
It also features a powerful trolley dynamic brake, for a fast trolley stop limiting the consumption of the translation engine.
Atom patented hydraulic system that limits power consumption by using engines with less Hp than the ones competitors must use.
Sturdy framework, extremely rigid and resistant, realised with top quality components to reduce primary maintenance needs.
| Bed Length |
Bed Width |
Platen (mm) |
Max Tonnage | Max Daylight |
Drive Motor |
Gross Weigh |
|
| S 588/1 | 1500mm | 430mm | 430x430 | 20t | 143mm | 2HP / 1.5kw | 1670kg |
| S 588/2 | 1600mm | 500mm | 500x500 | 20t | 143mm | 2HP / 1.5kw | 1695kg |
| S 588/3 | 1600mm | 500mm | 500x500 | 25t | 143mm | 2HP / 1.5kw | 1700kg |
| S 588/5 | 2000mm | 500mm | 500x500 | 25t | 143mm | 2HP / 1.5kw | 2100kg |
| HS 588/1 | 1500mm | 430mm | 430x430 | 20t | 175mm | 2HP / 1.5kw | 1750kg |
| HS 588/2 | 1600mm | 500mm | 500x500 | 20t | 175mm | 2HP / 1.5kw | 1780kg |
| HS 588/3 | 1600mm | 500mm | 500x500 | 25t | 175mm | 2HP / 1.5kw | 1780kg |
| HS 588/5 | 2000mm | 500mm | 500x500 | 25t | 175mm | 2HP / 1.5kw | 2180kg |
| HS 588/10 | 2000mm | 750mm | 750x750 | 30t | 188mm | 2.5HP / 1.875kw | 2670kg |
| HS 588/11 | 2000mm | 750mm | 500x750 | 30t | 188mm | 2.5HP / 1.875kw | 2650kg |
| HS 588/12 | 2000mm | 650mm | 650x650 | 30t | 188mm | 2.5HP / 1.875kw | 2620kg |
| HS 588/13 | 2000mm | 650mm | 500x650 | 30t | 188mm | 2.5HP / 1.875kw | 2600kg |
| HS 588/14 | 2000mm | 500mm | 500x500 | 30t | 175mm | 2.5HP / 1.875kw | 2340kg |
Click Here to Enquire about this Product >

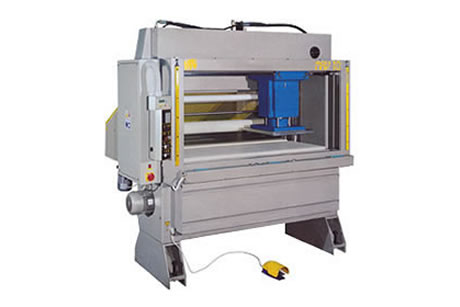

Manual Travelling Head Press
This die-cutting machine is the beat technology can offer in order to improve production performance and reduce costs. Production speed is ensured by:
• A programme controller (PLC)
• Traverse using an oversized chain
• Plate lowering with a hydrodynamic soundproofing system and high delivery pump
• Solid ergonomic control, which requires two hands and is time synchronized for the EEC market and countries where this is required by safety at work regulations
• Simple adjustment and use of the various functions
• Digital power adjustment (cutting) using specific keys on the control bar.
Standard Equipment
• 25 millimetre-thick cutting block
• Hydraulic oil (specify if the machine is to be delivered without oil)
• Neon lighting in the work area
• 900 millimetre-wide rear table
• Openable rear guard with dampers and safety microswitches
• Front protection using a modulated infrared light curtain
• All motors used are protected with thermomagnetic breakers
Accessories
• Motor-driven material feeder with mechanical or pneumatic opening
• Production counter and message and technical information display using a backlit LCD with text in Italian, English, French, Spanish, German (or other languages on request)
• Electronic cutting die search (only models MAV 12 and MAV 13)
• 50 millimetre-thick cutting block (instead of the standard 25 mm)
• Adjustable vibration machine mounts
